What Is The Most Effect Wear Resistant Part To Use An Impact Crusher

The most effective wear parts for an impact crusher depend on the application, material being crushed, and the crusher type (horizontal shaft impactor/HSI or vertical shaft impactor/VSI). However, the key wear parts that significantly impact performance and longevity are:

1. Blow Bars (HSI) / Impeller Shoes (VSI)

Function: Directly strike and break the material.
Best Material Choice:
- Martensitic Steel (e.g., Chrome Steel): Good for abrasive materials like limestone.
- Ceramic Inserts: Excellent for highly abrasive materials (e.g., granite, quartz).
- High-Chrome Iron (Hi-Cr): Best for hard and abrasive rocks (longest lifespan but more expensive).

2. Impact Plates / Apron Liners

Function: Absorb secondary impacts and protect the crusher housing.
Best Material: High manganese steel or tungsten carbide for durability.

3. Rotor (HSI) / Rotor Tips (VSI)

Function: The rotating component that holds blow bars or impeller shoes.
Best Protection: Hard-faced or carbide-coated rotors for extended life in abrasive conditions.

4. Anvils & Wear Liners (VSI)

Function: Provide crushing surfaces in VSI crushers.
Best Material: Tungsten carbide or high-chrome alloys for maximum wear resistance.

5. Side Liners / Curtains

Function: Protect the crusher’s interior from wear.
Best Choice: Replaceable manganese steel or composite liners.

Most Effective Wear Part?

For HSI Crushers: Blow bars are the most critical—they directly affect crushing efficiency and need frequent replacement.
For VSI Crushers: Rotor tips & anvils are crucial due to high-speed impacts.

Optimization Tips:

✔ Match material hardness to wear part composition.
✔ Rotate blow bars periodically to extend life.
✔ Monitor wear patterns to avoid rotor damage.

For maximum efficiency, use high-chrome or tungsten carbide wear parts in highly abrasive conditions.

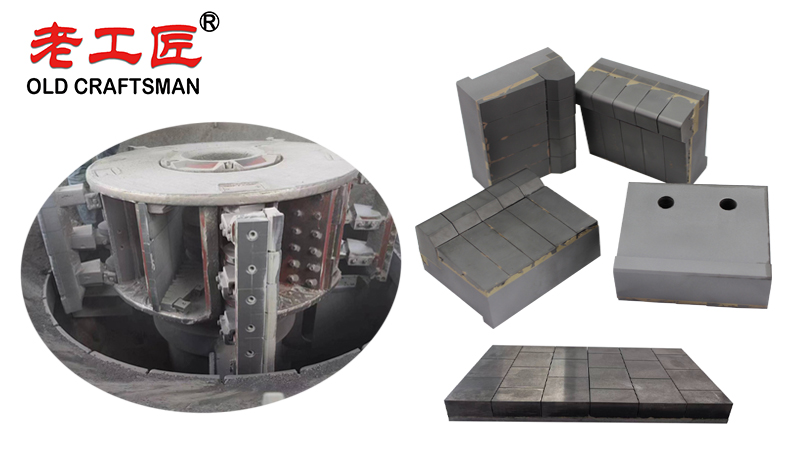

“Zhuzhou Old Craftsman Precision Alloy Co., Ltd. could make tungsten carbide wear parts and make your equipment use life is tens of times longer than before! We specialize in providing customized carbide wear products solutions to meet the demanding requirements of industries such as aerospace, automotive, mining, and precision machining.”
