How ZZ Craftsman Carbide Belt Cleaners Improve Conveyor Performance in Mining Environments

ZZ Craftsman (also known as ZZ Old Craftsman or Zhuzhou Old Craftsman Precision Alloy Co., Ltd.) specializes in tungsten carbide-based belt cleaners and scrapers, particularly vacuum-brazed carbide designs for demanding mining conveyor systems. These tools target material carryback—the residual ore, coal, dust, or aggregates that stick to the return side of the conveyor belt.

Challenges in Mining Conveyor Environments

Mining conveyors handle highly abrasive, high-impact materials like iron ore, coal, and aggregates under harsh conditions: dust, moisture, high belt speeds, reversing operations, and extreme wear. Common problems include:

Carryback and spillage: Material buildup on idlers, pulleys, and the belt return side, leading to misalignment, slippage, increased power consumption, and safety hazards (e.g., slippery floors, dust-related health risks).
Frequent maintenance and downtime: Traditional blades (urethane, rubber, or basic steel) wear out quickly, requiring frequent replacements and cleanups.
Belt and equipment damage: Buildup causes uneven wear, roller failure, and reduced conveyor efficiency.
Higher operational costs: Increased energy use, labor for housekeeping, material loss, and unplanned stops.

Effective belt cleaning addresses these by removing residue at the head pulley (primary cleaners) or further along the return (secondary cleaners).

How ZZ Craftsman Carbide Belt Cleaners Work

ZZ Craftsman cleaners primarily use high-grade tungsten carbide tips or blades, often vacuum-brazed for strong bonding to the holder. Tungsten carbide offers exceptional hardness, wear resistance, and a self-sharpening property as it abrades gradually while maintaining a sharp edge.

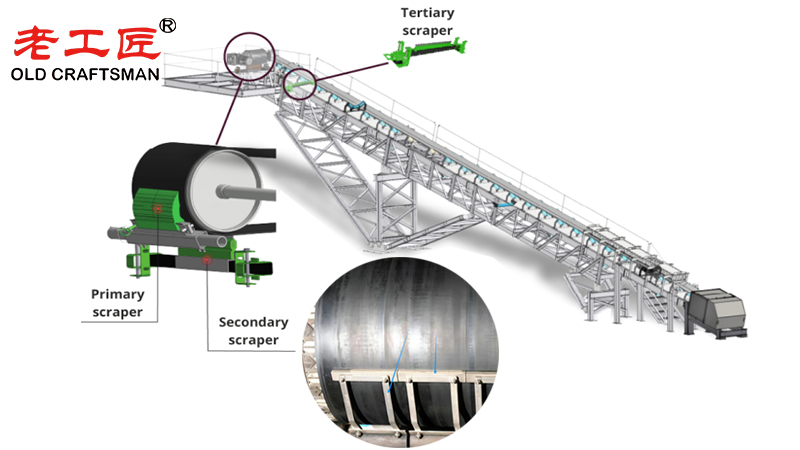

Primary/Secondary Designs: Primary cleaners scrape bulk material at the discharge pulley; secondary cleaners (a common ZZ focus) remove finer residues downstream. H-type or specialized scrapers suit high-impact belts.
Vacuum Brazing Technology: Enhances durability by securely attaching carbide strips, improving compatibility with the belt and resistance to vibration/impact.
Customization: Available in various sizes and configurations for coal, ore, metallurgy, steel, and underground mining.

Compared to alternatives:

Vs. Urethane/Rubber: Carbide lasts 3–12 months (or 3–5x longer than standard scrapers) in abrasive conditions, vs. rapid wear of softer materials.
Vs. Steel: Superior hardness and longevity, with lower lifetime costs despite higher upfront price.

Key Improvements to Conveyor Performance

Superior Cleaning Efficiency:
- Effectively removes stubborn carryback, even on high-speed, reversing, or high-impact belts. This can improve belt cleanliness by 35% or more in case studies, reducing material buildup on components.
- Results in less spillage, dust, and fugitive material—creating a cleaner, safer work environment and recovering more product.
Extended Service Life and Reduced Wear:
- Carbide’s hardness withstands extreme abrasion, providing 10–20x longer life than steel blades in some comparisons and significantly outlasting polyurethane.
- Self-sharpening maintains consistent performance, minimizing belt damage from dull or aggressive cleaners. Proper tensioning prevents splice damage or excessive belt wear.
Lower Maintenance and Downtime:
- Clients report up to 40% savings in maintenance costs and 25–30% less downtime. One mining case extended scraper life from 3 to 12 months, cutting maintenance by 70%.
- Fewer blade changes and cleanups mean less labor and fewer interruptions to production.
Boosted Throughput and Efficiency:
- Cleaner belts reduce strain on the drive system (lower power consumption), prevent misalignment, and support higher speeds/tonnage without issues.
- In coal and ore operations, this translates to higher productivity, energy savings, and reduced cleanup costs.
Cost-Effectiveness Over Time:
- While initial cost is higher, the lower total cost of ownership (TCO) comes from durability, less frequent replacements, and minimized secondary damage to the belt and idlers.

Real-World Examples from ZZ Craftsman Applications

In high-impact ore mining, their carbide cleaners reduced carryback and spillage while extending equipment life.
A coal handling facility saw 35% better cleanliness with H-type scrapers, lowering energy and cleanup expenses.
A mining company achieved a 70% maintenance cost reduction after switching to tungsten carbide secondary cleaners.
Steel plant users noted 20% production efficiency gains from decreased downtime.

Best Practices for Optimal Results

Install primary and secondary cleaners in combination for >90% cleaning efficiency where possible.
Monitor tension and blade wear regularly—carbide performs best with proper pressure (avoid over-tensioning to protect the belt).
Choose vacuum-brazed designs for mining’s toughest conditions.
Regular inspection prevents belt damage and maximizes ROI.

Overall, ZZ Craftsman carbide belt cleaners enhance mining conveyor reliability by tackling abrasion head-on with durable, high-performance materials. Our deliver measurable gains in uptime, safety, and cost savings, making them a strong upgrade for operations struggling with carryback in abrasive environments. For specific models or custom solutions, details are available on our site (zzcraftsman.com).
