High Impact Ores Demand With Long Service Life Carbide Belt Cleaners

Carbide belt cleaners (also called tungsten carbide belt scrapers or cleaners) are specialized conveyor belt cleaning systems widely used in mining and bulk material handling, particularly for high-impact, abrasive ores like iron ore, copper ore, coal, hard rock, and similar demanding applications.

Why Carbide (Tungsten Carbide) for High-Impact Ores?

Mining conveyors transporting heavy, abrasive ores face extreme conditions: high impact at loading points, constant abrasion, and carryback (material sticking to the belt). Standard polyurethane or rubber blades wear out quickly, leading to more downtime, spillage, belt damage, and higher maintenance costs.

Tungsten carbide blades excel here because:

Exceptional hardness and abrasion resistance — They maintain a sharp cleaning edge much longer than softer materials, often lasting 10–20 times longer (or up to 4x in some designs) in abrasive environments.
Impact resistance — Many designs feature cushioned or segmented blades (e.g., with springs or buffers) to absorb shocks from high-impact ore loading without damaging the belt or splices.
Long service life — Typical lifespans range from 12–24 months in normal conditions, though this varies with ore abrasiveness (e.g., shorter for quartz-rich ores). This reduces replacement frequency, labor, and downtime.
Superior cleaning efficiency — They remove stubborn carryback effectively, even on high-speed or reversing belts, preventing buildup on idlers, pulleys, and return sides. Common setups include:
Primary cleaners (at the head/discharge pulley) for bulk removal.
Secondary cleaners (further along the return side) for finer, residual cleaning — often where carbide shines due to lower direct impact.

⛏️ Top Solutions for High-Impact Ore Handling

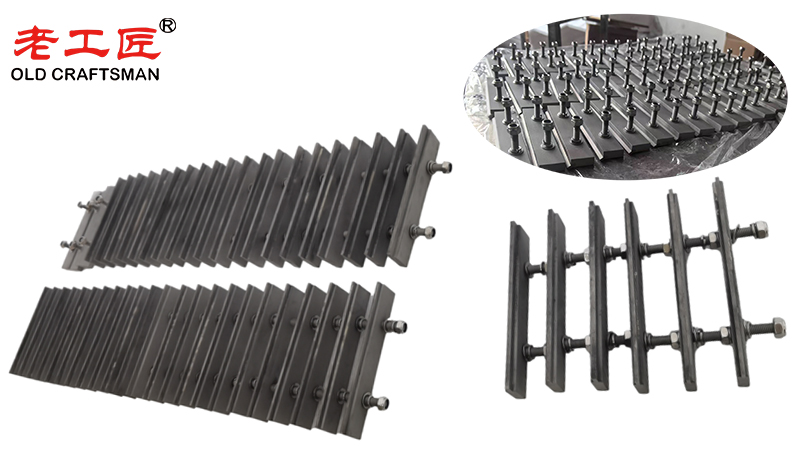

ZZ Craftsman Carbide Cleaner

Key Feature: Premium tungsten carbide tips (HRA 89-93.5) with vacuum brazing to prevent tip loss
Service Life & Durability: Claims 3-5x longer life than standard scrapers, with some reports of up to 10x longevity
Best For: Extreme abrasion; achieving maximum time between replacements.

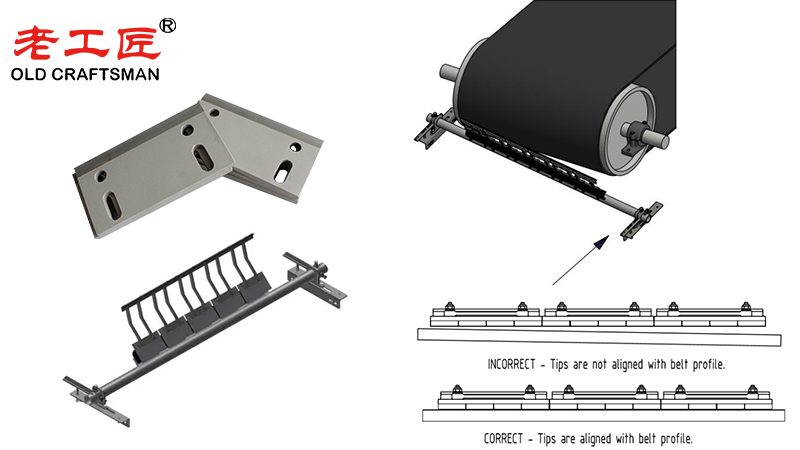

ZZ Craftsman Carbide Cleaner offer carbide-tipped options with features such as self-adjusting tensioners, segmented blades for belt conformance, and compatibility with mechanical or vulcanized splices.

Key Benefits in High-Impact Ore Applications

Reduced carryback and spillage — Improves safety, lowers cleanup costs, and protects downstream equipment.
Extended belt and component life — Less abrasive wear from built-up material.
Lower total ownership cost — Despite higher upfront price, the extended service life and minimal maintenance (sometimes just one retensioning) make them cost-effective.
High-temperature and harsh environment tolerance — Suitable for dry/wet, hot, or corrosive conditions in mining.

Selection Tips

Choose impact-resistant designs (e.g., with protected tips or cushioned mounts) for loading zones with heavy ore drops.
Match blade grade to your ore: Standard tungsten carbide for most ores; specialized grades for extreme abrasion.
Consider belt speed, width, splice type, and material characteristics (moisture, particle size).
Combine primary (often polyurethane or carbide) + secondary (carbide) for optimal results in very demanding setups.

“Zhuzhou OC Precision Alloy Co., Ltd. could make tungsten carbide wear parts and make your equipment use life is tens of times longer than before! We specialize in providing customized carbide wear products solutions to meet the demanding requirements of industries such as aerospace, automotive, mining, and precision machining.”
