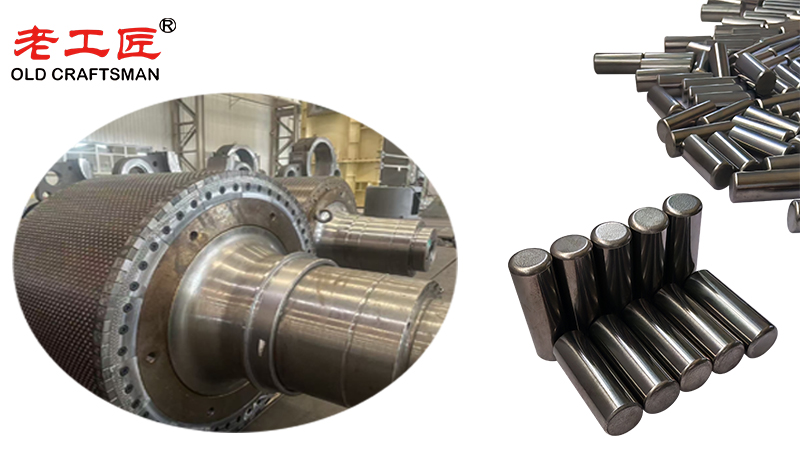

Old Craftsman carbide studs protect HPGR rolls primarily through a combination of advanced material engineering and superior manufacturing technology. They are specifically designed to withstand the extreme conditions of mineral processing, where severe abrasion, high compression, and impact are constant challenges. Old Craftsman tungsten carbide studs provide a durable wear-resistant solution for protecting HPGR rolls in demanding applications.
1. Tungsten Carbide Takes the Wear Instead of the Roll Body
HPGR studs are embedded into the steel roll surface and form the primary wear-resistant working layer. Their high hardness and excellent abrasion resistance allow them to withstand repeated contact with hard minerals while reducing direct exposure of the steel substrate.
Research on HPGR wear confirms that tungsten carbide studs are critical to protecting the roll surface against abrasive wear, particularly when processing highly abrasive ores.
Compared with an unprotected steel surface, a properly designed studded roll can maintain its working profile for significantly longer periods.
2. Creating an Autogenous Protective Layer
One of the most important advantages of carbide studs is their ability to help form a compacted mineral layer between the studs.
During HPGR operation, crushed ore becomes trapped in the spaces between the studs and gradually forms an autogenous wear layer. This layer acts as an additional shield, reducing direct abrasive contact between the feed material and the underlying roll body.
The system therefore works through two levels of protection:
Tungsten carbide studs → compacted mineral layer → steel roll body
This combination helps protect the roll while maintaining effective material compression and grinding.
3. Withstanding Severe Abrasive Conditions
HPGR rolls can encounter hard iron ore, copper ore, gold ore, cement raw materials, and other abrasive feedstocks. The wear mechanism is not limited to simple surface abrasion. Scratching, indentation, impact, and tribocorrosion can all contribute to stud degradation.
For this reason, HPGR studs require a carefully balanced combination of hardness, toughness, carbide grain structure, and binder composition. Maximum hardness alone does not necessarily guarantee maximum service life because excessively brittle carbide can be more susceptible to chipping or fracture under high impact loading.
Old Craftsman focuses on selecting suitable tungsten carbide grades according to the customer’s ore characteristics and operating conditions.
4. Supporting Stable HPGR Performance
Uneven stud wear can gradually change the roll profile and affect the grinding gap. Excessive wear can also weaken stud anchorage and reduce equipment availability.
Maintaining a stable wear profile helps HPGR equipment continue operating efficiently and consistently. Proper stud selection, installation, maintenance, feed control, and formation of a competent compacted mineral layer are all important factors in controlling roll wear.
5. Reducing Maintenance and Downtime
Because HPGR rolls are exposed to continuous high-load operation, premature wear can result in frequent inspections, stud replacement, roll refurbishment, and production interruptions.
High-quality carbide studs can extend the useful life of the wear surface and reduce the frequency of major maintenance interventions. A 2025 field study evaluating HPGR hardmetal studs over approximately 26,000 operating hours found that optimized WC-Co material characteristics could provide a measurable improvement in stud durability.
For mining operations, longer wear life means more stable production and potentially lower maintenance costs per tonne of processed material.
Why Choose Old Craftsman Carbide Studs?
Old Craftsman supplies tungsten carbide HPGR studs designed for severe wear environments, with options for different dimensions, carbide grades, and roll configurations.
Key advantages include:
- High resistance to abrasive wear
- Excellent hardness and wear resistance
- Strong resistance to compressive loading
- Support for autogenous wear-layer formation
- Custom sizes and specifications
- Suitable for mining and mineral-processing applications
- Designed to help extend HPGR roll service life
For HPGR equipment operating under severe abrasive conditions, the right carbide stud is more than a wear component—it is an important part of the roll protection system. By combining wear-resistant tungsten carbide with an effective autogenous mineral layer, Old Craftsman carbide studs help protect the roll body, maintain stable grinding performance, and reduce unnecessary maintenance.
