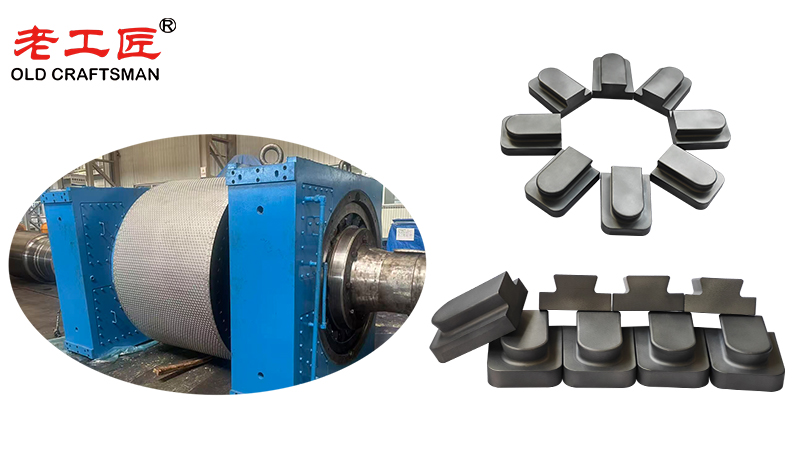

Old Craftsman HPGR carbide edge blocks help lower maintenance costs primarily by dramatically extending the service life of the roller edges, which are the most vulnerable and costly parts of a High-Pressure Grinding Roll (HPGR). While the initial investment might be higher, they significantly reduce the frequency and cost of repairs, leading to a lower total cost of ownership. Tungsten carbide edge blocks provide a durable solution by protecting vulnerable roll edges against continuous abrasion and impact.
1. Superior Resistance to Abrasive Wear
HPGR roll edges are constantly exposed to hard and abrasive materials such as iron ore, copper ore, gold ore, cement clinker, and other minerals. Conventional steel or hardfacing can wear relatively quickly, requiring repeated repair or replacement.
Old Craftsman HPGR Carbide Edge Blocks use tungsten carbide as the primary wear-resistant material. Their high hardness and excellent wear resistance help protect the roll edges for longer operating periods, reducing the frequency of maintenance interventions.
2. Longer Service Life Means Fewer Replacements
One of the biggest maintenance costs in HPGR operation is the replacement or refurbishment of worn roll components. When edge protection wears rapidly, operators may need to stop the equipment for rebuilding, welding, or replacement.
Carbide edge blocks are designed to withstand severe wear and maintain effective edge protection for extended periods. By increasing the service life of the protected area, they can help reduce the number of maintenance cycles required during a campaign.
3. Reduced Unplanned Downtime
Maintenance downtime can be more expensive than the wear parts themselves because every unexpected shutdown can interrupt production.
HPGR edge blocks help protect the roll body and maintain the roll profile, reducing the risk of accelerated edge damage. Properly designed edge protection can also allow maintenance activities to be planned around scheduled shutdowns instead of emergency repairs. Industry experience has demonstrated that improved edge protection can significantly reduce the need for frequent hardfacing work.
4. Protecting the More Expensive Roll Components
The purpose of an HPGR carbide edge block is not simply to provide a wear surface. It acts as a sacrificial protection layer between highly abrasive feed material and the underlying roll structure.
Preventing severe wear on the roll edge can help extend the usable life of the roll assembly and reduce expensive rebuilding work. Research on HPGR wear systems also shows that protecting the roll surface is critical to achieving longer roller life and better cost effectiveness.
5. Maintaining Stable Grinding Performance
Excessive edge wear can change the roll profile and contribute to material leakage around the edges. This may affect the pressure distribution and grinding performance.
By maintaining a more stable edge profile, carbide edge blocks help HPGRs operate more consistently throughout the wear campaign. Better wear control can contribute to stable product quality, throughput, and overall equipment performance.
6. Lower Total Cost of Ownership
Although tungsten carbide edge blocks may have a higher initial purchase price than conventional steel wear solutions, maintenance cost should be evaluated based on total cost of ownership rather than purchase price alone.
The potential savings come from several areas:
- Longer wear life
- Fewer replacement cycles
- Less welding and rebuilding
- Reduced maintenance labor
- Lower unplanned downtime
- Better protection of the HPGR roll body
- More predictable maintenance scheduling
These factors can make carbide edge protection a cost-effective choice for demanding HPGR applications.
Why Choose Old Craftsman HPGR Carbide Edge Blocks?
Old Craftsman specializes in customized tungsten carbide wear components for demanding industrial applications. HPGR carbide edge blocks can be manufactured according to specific roll dimensions, installation requirements, and operating conditions.
For highly abrasive mining applications, selecting the appropriate carbide grade, geometry, dimensions, and mounting solution is important for achieving reliable performance. A properly engineered edge block can help operators maximize wear life while minimizing maintenance requirements.
Conclusion
Old Craftsman HPGR Carbide Edge Blocks are designed to provide durable protection for HPGR roll edges under severe abrasive and high-pressure conditions. By extending wear life, protecting the roll structure, reducing maintenance frequency, and minimizing downtime, carbide edge protection can help mining operations reduce maintenance costs and improve long-term HPGR reliability.
For HPGR operators looking to reduce cost per ton and increase equipment availability, investing in high-quality tungsten carbide edge protection can be an effective long-term wear management strategy.
